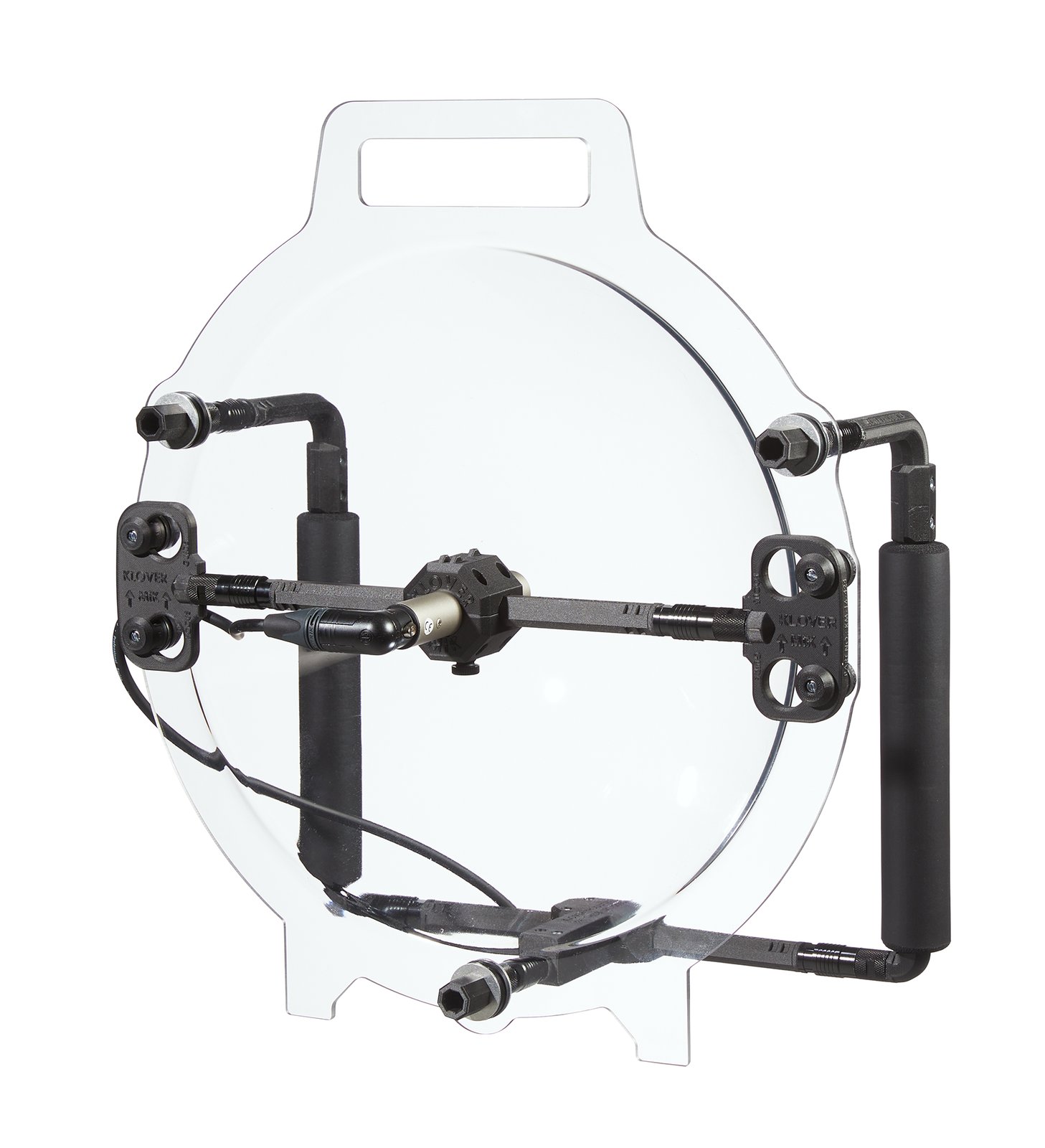

KLOVER MiK 16
The KLOVER MiK 16 was initially created for baseball stadiums, where the KLOVER MiK 26 could obstruct the fan’s view. Weighing just three pounds, the KLOVER MiK 16 parabolic microphone excels in mobility. Its smaller size also makes it ideal for security applications where discreet audio capture is needed.
The handheld models (KLOVER MiK 16 and KLOVER MiK 16 Broadcast) are constructed with our new deeper dish that provides a tighter pickup pattern. The new dish provides a pickup pattern very similar to the KLOVER MiK 09 and the KLOVER MiK 26.
The stationary models ("KLOVER MiK 16 Hard Mount", "KLOVER MiK 16 Sound Shield", and the "KLOVER MiK 16 in Enclosure") are still constructed with our original dish. The original dish provides a slightly wider pickup pattern than the KLOVER MiK 09 and the KLOVER MiK 26. (We can build any model with either dish upon request.)
Out of Stock
Available Models
KLOVER MiK 16
$1,399
Our new third generation “K” model includes two handles allowing operators to use both hands to hold the parabolic and be more accurate.

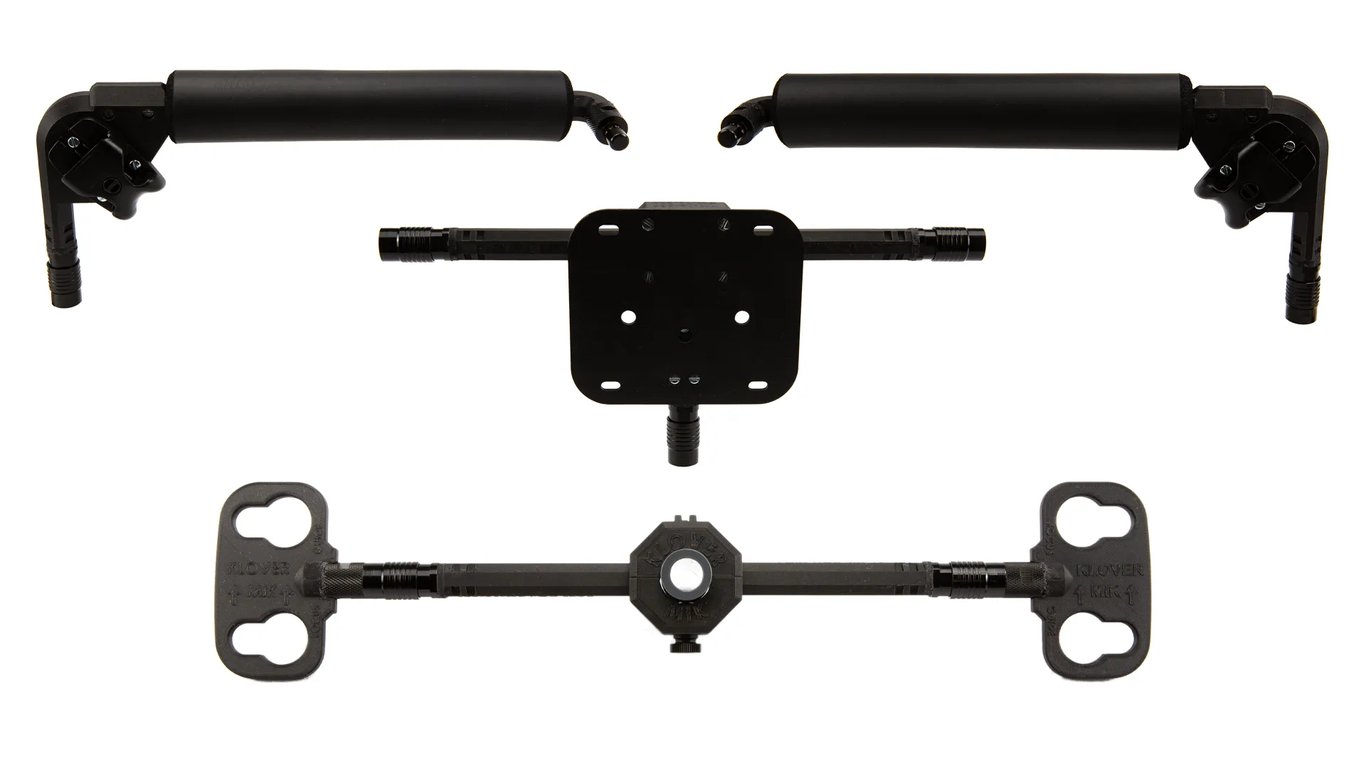

KLOVER MiK 16 Broadcast
$1,699
Our newest model provides a plate for mounting your electronics and a neck strap to reduce operator fatigue.

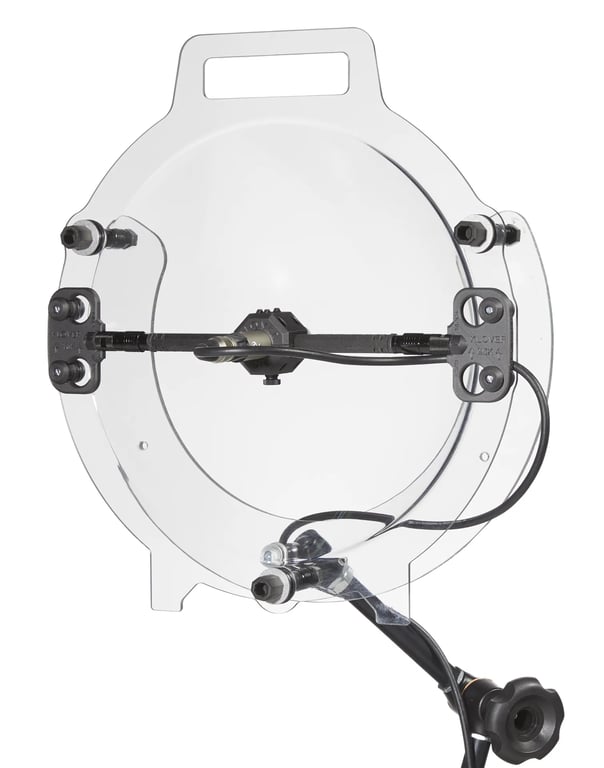

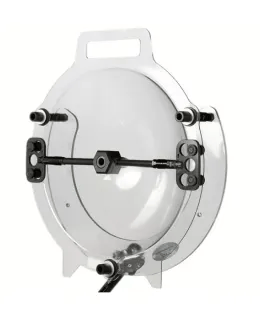

KLOVER MiK 16 Hard Mount
$1,289
Clear acrylic mounting plate instead of handles for nearly invisible, stationary mounting options.

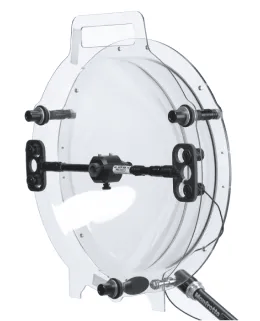

KLOVER MiK 16 Sound Shield
$1,639
Clear polycarbonate mounting dish instead of handles for increased sound isolation and nearly invisible stationery mounting options.

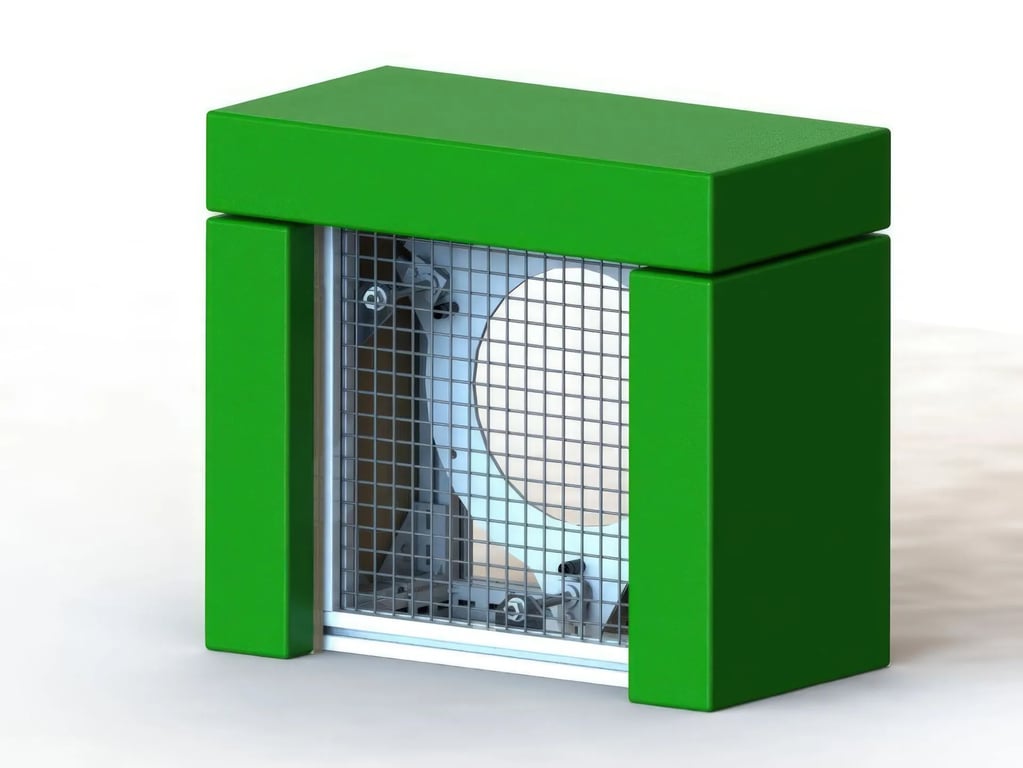

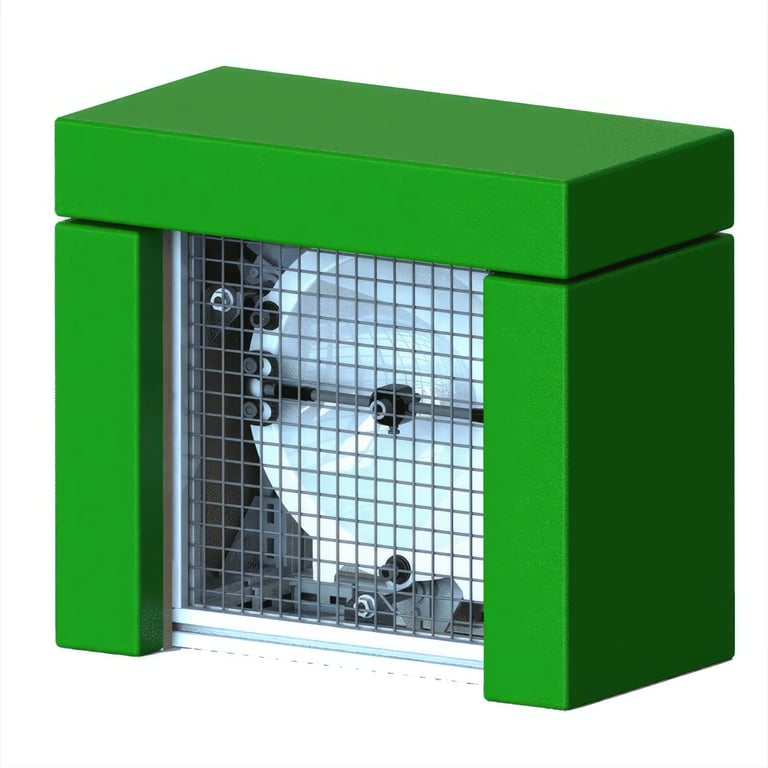

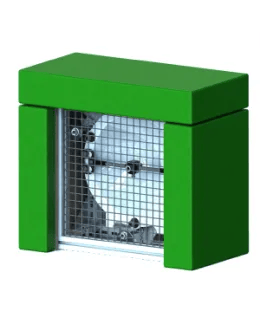

KLOVER MiK 16 in Enclosure
From $3,639
The heart of our KLOVER MiK 16 is supported and protected by a sturdy enclosure.
Read More
Steven B. Cohen
Read More
Ray Doyle
Read More
Dan Beckham
Read More
Devin Barnhart
Read More
Weston Carter
Read More
Andrew Halverson
Read More
Tactical Ops / CTC-IS NCOIC
Read More
Matthew Cunningham
Read More
Kathryn Rohr
Read More
Joe Carpenter

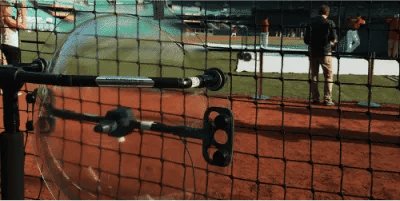

Highly Reflective Dish
Our stiff, highly reflective dish material is made from ballistics-grade plastic and provides a fuller audio signal.

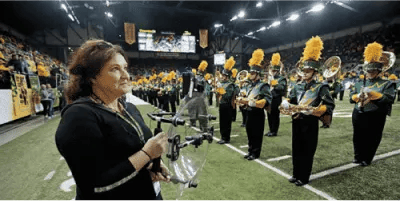

Lightweight
Weighing just under 3 pounds, the KLOVER MiK 16 parabolic microphone is easy to operate and transport.
Vibration Insulation
We use specialty vibration isolation bushings on all attachments and handles to eliminate noise that may come from an operator’s movement.

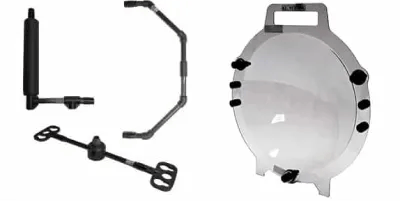

Modular Construction
Attachments such as microphone yokes and handles are designed to be interchangeable so you can customize your KLOVER MiK for different jobs and easily replace damaged parts. The dish is designed to be safely stacked without scratching the critical internal surface.

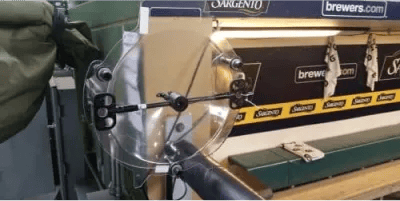

VERSATILE SETUP
With three different mounting systems, you can operate the KLOVER MiK by hand or permanently affix it for nearly invisible audio capture.
Designed For Safety
PVC is brittle and creates sharp, spear-like edges if broken. Metal parts can also cause serious injury to the operator and athlete. However, our carbon fiber parts crush upon impact. All protruding studs have also been removed from the front of the dish. (Click on the "Why KLOVER" / "Quality & Safety" menu item to see why we care about this.)
Sample Clips
Applications
Streaming
Streaming
Presenting classes online is becoming more common every year. Streaming video of the instructor is quite easy, and using a wireless mic provides great audio from the instructor. If desired, it is rather straight forward to add a second camera to capture video of the students. The challenge, however, is to capture audio of student questions and interaction.
A major university used the KLOVER MiK 16 to capture questions from students in movie theaters for the professor back on campus. (Read the full story here.)
The unit can also be mounted on a pan/tilt unit to follow the video camera, or mounted to a larger pan/tilt/zoom camera, to provide more focused audio to online meetings.
Newscasters
Newscasters
Interviews can be conducted with no notice because there is no need to place a mic on the subject. A public statement, or announcement can be be captured from far greater distances than a typical shotgun mic.
Press Conferences
Press Conferences
The range of the KLOVER MiK allows the presenter or the questioners to be heard, depending on the need. Learn more about how the Philadelphia Eagles use the KLOVER MiK 16.
Nature Study
Nature Study
Our products have been used by National Geographic contributors and nature bloggers around the world.
This video shows our KLOVER MiK 16 capturing cranes in flight and this video shows a compilation of clips captured with our 9-inch products.
Security / Law Enforcement
Security / Law Enforcement
No other microphone can capture audio from such a great distance. Law enforcement and security agencies can monitor dangerous situations from a safe distance.
Documentaries
Documentaries
The KLOVER MiK has been used for prank and reality programs where capturing audio from a great distance is required.
Interviews can be conducted without fuss because there is no need to place a mic on the subject. Depending on the level of ambient noise, the audio captured with our 9-inch KLOVER MiK will be very similar to a lapel mic on the subject from up to 6 or 8 feet.
An unexpected benefit of using the KLOVER MiK is that the audio signal drops off much less when your subject turns their head to the side, as compared to a lapel mic.
The directionality of the KLOVER MiK greatly reduces the amount of ambient, or crowd noise that is captured. This allows your subject to stand out from the background noise. At the same time, the pickup is large enough that more than one subject can be captured with equal levels. You don’t need to worry about the subject speaking while the interviewer has pulled back the mic.
Sports
Sports
The KLOVER MiK line of parabolic has become the industry standard for capturing on-field sounds around the world. They have been used at the Super Bowl, the World Series, the CFP Championship, March Madness, the World Cup, and the Olympics.

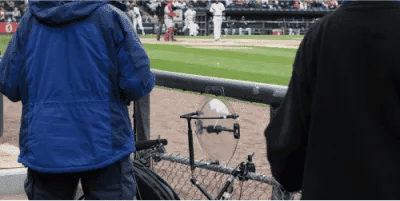

The KLOVER MiK 16 has been used for the MLB playoffs and the World Series. The have also been mounted in several major league baseball parks, both with and without our Klover Box enclosures.
While not providing the same range as the KM-26, the KM-16 also works well for field sports such as football or rugby.
Mechanical Noise Detection
Mechanical Noise Detection
The focused pickup pattern of the KLOVER MiK allows noises from specific points on equipment to be monitored and analyzed. Brakes are just one example of noises that are easily captured.
The focused pickup pattern of the KLOVER MiK allows the high frequency sounds of air leaks to be easily detected and located.
Photo Gallery
-1920.webp)
Specifications
KLOVER MiK 16
- Dimensions: 18 x 16 x 10 inches
- Weight: Approximately 3 pounds
- Mounting Options: Intended to be handheld, but one (1) 1/4-20 tapped hole mounting inserts are embedded into the lower handles for stationery mounting.
KLOVER MiK 16 Broadcast
- Dimensions: 18 x 16 x 10 inches
- Weight: Approximately 4 pounds
- Mounting Options: Intended to be handheld, but a 1/4-20-tapped mounting hole is machined into the bottom handle for stationery mounting.
KLOVER MiK 16 Hard Mount
- Dimensions: 18 x 16 x 6 inches
- Weight: Approximately 3 pounds
- Mounting Options: Four ¼-inch clearance holes are provided in the mounting plate for stationary mounting
KLOVER MiK 16 Sound Shield
- Dimensions: 18 x 16.5 x 8.3 inches
- Weight: Approximately 4 pounds
- Mounting Options: Ten ¼-inch clearance holes are provided in the flange of the Sound Shield mounting bracket for stationary mounting
All Models
- Range: 250 to 300 feet in ideal conditions
- Amplification: Approximately 18 X
- Dimensions: 18 x 16 x 10 inches
- Dish Outside Diameter: 16 inches
- Collector Diameter: 13.5 inches
- Collector Dish Thickness: 3/16 inch
- Frequency: 40 Hz to 15 kHz
- Focus Point: 1-1/8 inch behind the inner microphone mount center hub (1-1/2 inch Behind the Front Face of the Collector Dish)
- Pickup Pattern: Approximately conical (20 degrees off center)
- (See “Test Results.")
- Microphone: Omnidirectional or wide cardioid mic (lapel mics up to 5/16 inch in diameter or cylindrical/pencil mics 3/4 to 7/8 inch in diameter)
Education Center
Get the most out of your KLOVER MiK experience with our comprehensive collection of resources.
Accessories & Spare Parts
*only for existing customers
Custom Designs
We can create custom components to meet customer needs. We have customized our parabolic mic to fit inside an existing case. We have also designed custom mic yokes to support a unique microphone. The possibilities are almost limitless.
Custom Bracketry
We can create custom bracketry for you to mount our parabolic microphones on poles or pipes of various sizes with various angles. This has been helpful in both broadcasts as well as security applications.

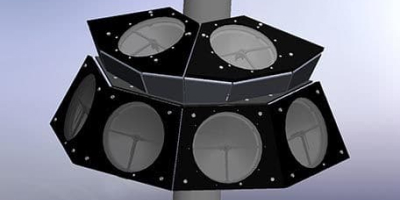

Parabolic Mic Arrays
This specialty design was created to detect drones approaching secure sites, such as government buildings. Needing coverage for a large area of sky, we designed an array of separate parabolic microphones to listen from any direction within a sector of the sky.
Custom Enclosures
We’ve designed low-profile, custom enclosures to protect parabolic mics mounted in dangerous areas, such as behind the backstop at Major League baseball games.
Custom Enclosure Examples
Two custom parabolic microphone enclosures were created for Tropicana Field, home of the Tampa Bay Rays. They were resized to fit the backstop and a shelf for an optional remote camera was added.
The Minnesota Twins also purchased two custom enclosures for Target Field. They were resized to fit the trapezoidal opening in the backstop. A shelf for an optional remote camera was also added.
Two custom parabolic microphone enclosures were also created for Minute Maid Field, home of the Houston Astros. They were resized to fit the existing signage along the backstop.
